0809832

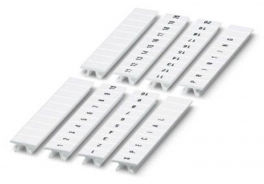

ZB 5,08,LGS:L1-N,PE Zack marker strip

Manufactured by

Brand PHOENIX CONTACT

Zack marker strip, Strip, white (RAL 9010), labeled, printed horizontally: L1, L2, L3, N, PE, L1, L2, L3, N, PE, mounting type: latching, for terminal block width: 5.08 mm, Number of individual labels: 10, text field height: 10.5 mm, text field width: 4.98 mm

4017918591816

only

available

100+

410

pcs.

(2026-08-31)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

0⁹¹€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-08-31

pcs.

Properties

Description

Dimensions

Files

Codes

General

10 identically marked strips make up one packing unit (PU).

n-Hexane[CAS No. 110-54-3]

Test passed

Product type

Terminal marker

Pitch

5.08 mm

Water + Petroleum ether[CAS No. 64742-82-1]

Test passed

Number of individual labels

Number of individual labels per row

Number of marker strips

Printing direction

printed horizontally

Printing

L1, L2, L3, N, PE, L1, L2, L3, N, PE

Slot type

high

Width

4.98 mm

Height

10.50 mm

Depth

4.20 mm

Text field width

4.98 mm

Text field height

10.5 mm

Color

white (RAL 9010)

Material

Flammability rating according to UL 94

Base element material

Components

free from silicone and halogen

Ambient temperature (operation)

-40 °C ... 100 °C

Recommended ambient temperature (storage/transport)

23 °C

Recommended humidity (storage/transport)

50 % (Storage in a dry and dark place in the original packaging is recommended)

Testing for paint wetting impairment substances (LABS-conformity)

VW PV 3.10.7:2005-02

Result

Test passed

Specification

DIN EN 61010-1 (VDE 0411-01):2020-03

DIN EN 62208 (VDE 0660-511):2012-06 (in parts)

DIN EN IEC 60068-2-11 (VDE 0468-2-11):2022-10

DIN EN ISO 2409:2020-12 (following)

DIN EN ISO 4892-2:2021-11 (following)

EN ISO 1518-1:2023 (following)

EN ISO 22479:2022-06

IEC 60068-2-2:2007-07

Requirements

≥ 5 N

Test duration

96 h

Procedure

Artificial irradiation.

Method B

Test Bb

Duration

96 h

Temperature for testing

120 °C

Isopropanol (99%) [67-63-0]

Test passed

<i>n</i>-Hexane<br/>[CAS No. 110-54-3]

Test passed

Water + Petroleum ether<br/>[CAS No. 64742-82-1]

Test passed

Cycles

Wipe resistance

DIN EN 61010-1 (VDE 0411-1)

Mounting type

latching

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

67.03 Kb

pxc_0809832_00_01_ZB-5-08-LGS-L1-N-PE_2D.pdf

ECLASS-13.0

27281101

ECLASS-15.0

27281101

ETIM 10.0

EC000761

UNSPSC 21.0

39131500

GTIN

4017918591816
