Home Catalog Connectivity and Cabling Connectors Industrial Connectors SACC-CI-M12FSR-5CON-L90 THR R Contact carrier

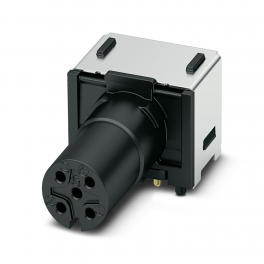

SACC-CI-M12FSR-5CON-L90 THR R Contact carrier
N
0%
1028585

SACC-CI-M12FSR-5CON-L90 THR R Contact carrier

Manufactured by
Brand PHOENIX CONTACT
Contact carrier, 5-position, Socket, angled, M12, A-coding, THR solder connection
EAN: 4055626666099
No downloads found
only
available
100+
10440
pcs.
(2026-10-19)
 In Phoenix Contact (DE) warehouse.
Product recommended retail price (RRP) is
000€
983€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
100+
inquiry
0
2026-10-19
pcs.
Properties
Description
Dimensions
Files
Codes
Nominal voltage UN
60 V
Notes on operation
Nominal current IN
4 A
Order information:
Not compatible with SPEEDCON housings.
Product type
Contact insert
Application
Signal
Number of positions
5
No. of control contacts
5
Coding
A
Thread type
M12
Overvoltage category
II
Degree of pollution
3
Rated surge voltage
1.5 kV
Contact resistance
≤ 10 mΩ
Insulation resistance
≥ 100 MΩ
Nominal voltage UN
60 V
Nominal current IN
4 A
Connection method
THR solder connection
Material Contact carrier
PA 6.6
Material Contact
CuZn
Material Contact surface
Au
Flammability rating according to UL 94
V0
Head design
Socket
Head cable outlet
angled
Head thread type
M12
Insertion/withdrawal cycles
> 100
Degree of protection
IP67 (correctly plugged in and locked)
Ambient temperature (operation) (male connector/female connector)
-25 °C ... 105 °C
-40 °C ... 105 °C (without mechanical actuation)
UL Type Rating
Type 4 (indoor use only)
Standard designation
M12 circular connector
Standards/specifications
according to IEC 61076-2-101
Assembly note
The pin assignment is rotated 180° to comply with the standard.
Type of packaging
Belt
[W] tape width
44 mm
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
265.84 Kb
pxc_1028585_08_00_SACC-CI-M12FSR-5CON-L90-THR-R_PACK.pdf
181.03 Kb
pxc_1028585_08_04_SACC-CI-M12FSR-5CON-L90-THR-R_FAM.pdf
430.28 Kb
000823035_05_ULCompCAUS_E221474-20140616.pdf
ECLASS-13.0
27440223
ECLASS-15.0
27440223
ETIM 10.0
EC003557
UNSPSC 21.0
39121400
GTIN
4055626666099
