1038732

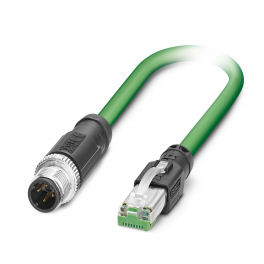

NBC-M12MSD/ 2,0-93C/R4AC Network cable

Manufactured by

Brand PHOENIX CONTACT

Network cable, PROFINET CAT5 (100 Mbps), EtherCAT® CAT5 (100 Mbps), 4-position, PUR halogen-free, green RAL 6018, shielded (Advanced Shielding Technology), Plug straight M12, coding: D / IP67, on Plug straight RJ45 / IP20, cable length: 2 m

4055626591391

only

available

100+

99999

pcs.

(2026-09-15)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

40⁶⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-09-15

pcs.

Properties

Description

Dimensions

Files

Codes

General

Further products with variable cable type and variable cable length can be found in the accessories section

Nominal voltage UN

48 V AC

60 V DC

Product type

Data cable preassembled

Application

Standard

Nominal current IN

1 A

Number of positions

Shielded

yes

Overvoltage category

Degree of pollution

Bus system

PROFINET

Signal type/category

EtherCAT® CAT5 (IEC 11801)

EtherCAT® CAT5 (IEC 11801), 100 Mbps

PROFINET CAT5 (IEC 11801)

PROFINET CAT5 (IEC 11801), 100 Mbps

Status display

Status display present

Nominal voltage U<sub>N</sub>

48 V AC

60 V DC

Nominal current I<sub>N</sub>

1 A

Transmission medium

Copper

Transmission speed

100 Mbps

Transmission characteristics (category)

CAT5 (IEC 11801:2002)

Flammability rating according to UL 94

Type

M12 Plug, straight, 4-position, shielded (Advanced Shielding Technology), Keying: D

RJ45, straight

Shielding

Advanced Shielding Technology

Insertion/withdrawal cycles

≥ 100

≥ 750

Insulation resistance

≥ 100 MΩ

≥ 500 MΩ*km

Tightening torque

0.4 Nm

Material Contact

CuSn

Material Contact surface

Ni/Au

Material Contact carrier

PA 6.6

Material Screw connection

Die-cast zinc, nickel-plated

Material Grip body

TPU, hardly inflammable, self-extinguishing

Material Seal

FKM

Degree of protection

IP20

IP20 (RJ45 connector)

IP65

IP65 (M12 connector)

IP67

IP67 (M12 connector)

Ambient temperature (operation)

-25 °C ... 80 °C

-25 °C ... 85 °C

-40 °C ... 70 °C (cable, fixed installation)

-40 °C ... 70 °C (Cable, flexible installation)

Standard designation

M12 connector

Standards/regulations

IEC 61076-2-101

Material Housing

Color (Housing)

black

Cable length

2 m

UL AWM Style

20233 (80°C/300 V)

Cable type

PROFINET drag chain CAT5 [93C]

Conductor structure

1x4xAWG22/7, SF/TQ

AWG signal line

Conductor cross-section

4x 0.34 mm²

Wire diameter incl. insulation

1.5 mm ±0.05 mm

External cable diameter

6.50 mm ±0.2 mm

Outer sheath, material

PUR

External sheath, color

green RAL 6018

Conductor material

Tin-plated Cu litz wires

Material wire insulation

Single wire, color

white, yellow, blue, orange

Overall twist

Star quad

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

328.35 Kb

097606128_01_ULListCAUS_E335024.pdf

ECLASS-13.0

27060307

ECLASS-15.0

27060307

UNSPSC 21.0

26121600

GTIN

4055626591391
