Note
For power distribution applications, IEC 60364-4-43.2008; modified + corrigendum Okt. 2008 (DIN VDE 0100-430:2010-10) section 433.2 ff must be observed!
The maximum load current of a single clamping unit must not be exceeded.
Product type

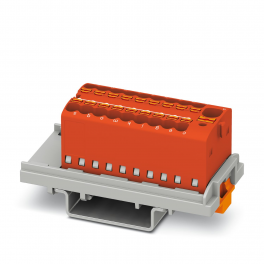

Distributor terminal block
Maximum power dissipation for nominal condition
Number of connections per level
Stripping length
10 mm ... 12 mm
8 mm ... 10 mm
Internal cylindrical gage
Connection in acc. with standard
IEC 60947-7-1
IEC 60998-2-2
Conductor cross-section rigid
0.14 mm² ... 2.5 mm²
0.2 mm² ... 6 mm²
0.34 mm² ... 2.5 mm²
0.34 mm² ... 6 mm²
Cross section AWG
24 ... 10 (converted acc. to IEC)
26 ... 14 (converted acc. to IEC)
Conductor cross-section flexible
0.14 mm² ... 2.5 mm²
0.2 mm² ... 6 mm²
0.34 mm² ... 4 mm²
Conductor cross-section, flexible [AWG]
24 ... 10 (converted acc. to IEC)
26 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.14 mm² ... 1.5 mm²
0.2 mm² ... 4 mm²
0.34 mm² ... 1.5 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)
0.14 mm² ... 1.5 mm²
0.2 mm² ... 4 mm²
0.34 mm² ... 1.5 mm²
Maximum load current
22 A (with a 2.5 mm² conductor cross-section)
41 A (with 6 mm² conductor cross-section)
Conductor cross-section, rigid [AWG]
24 ... 12 (converted acc. to IEC)
Flammability rating according to UL 94
Insulating material group
Static insulating material application in cold
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))
Relative insulation material temperature index (Elec., UL 746 B)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
Calorimetric heat release NFPA 130 (ASTM E 1354)
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Requirement temperature-rise test
Increase in temperature ≤ 45 K
