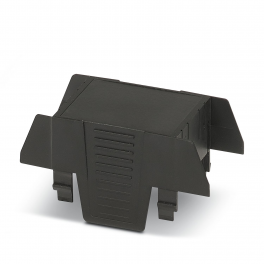

EH 35-C DS/ABS-PC BK9005 Upper housing part

1069993

EH 35-C DS/ABS-PC BK9005 Upper housing part

Manufactured by

Brand PHOENIX CONTACT

DIN rail housing, Upper housing part, tall design, connection opening on both sides, connection opening on both sides, width: 35.1 mm, height: 75 mm, depth: 36.95 mm, color: black (similar RAL 9005)

4055626748221

only

available

100+

pcs.

(2026-08-31)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

2⁸⁹€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-08-31

pcs.

Properties

Description

Dimensions

Files

Codes

Assembly note

Please observe the application note in the download area.

Product type

Upper housing part

Housing type

Basic housing

DIN rail housing

Housing series

Product family

EH..ABS-PC..

Number (Connection openings)

Ventilation openings present

Width

35.1 mm

Height

75 mm

Depth

36.95 mm

Depth from base support surface

19.95 mm

Color (Upper housing part)

black (RAL 9005)

Material Upper housing part

ABS-PC

Flammability rating according to UL 94

Max. IP code to attain

IP20

Ambient temperature (operation)

-40 °C ... 80 °C (depending on power dissipation)

Ambient temperature (storage/transport)

-40 °C ... 55 °C

Ambient temperature (assembly)

-5 °C ... 80 °C

Relative humidity (storage/transport)

95 %

Type of PCB mount

Latching

Mounting type

snap in

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

1750.82 Kb

pxc_1069993_01_05_EH-35-C-DS-ABS-PC-BK9005_2D.dxf

155.91 Kb

pxc_1069993_01_05_EH-35-C-DS-ABS-PC-BK9005_2D.pdf

229.04 Kb

000417870_04_ULCompMolderUS_E240868.pdf

ECLASS-13.0

27190603

ECLASS-15.0

27190603

ETIM 10.0

EC002779

UNSPSC 21.0

31261500

GTIN

4055626748221
