ECS-P-122X169-S-UV1-1M1FM12 Front plate

Manufactured by

Brand PHOENIX CONTACT

Screw-locking faceplate with M12-SPEEDCON connectors (1 male, 1 female), IP66/67/69 rated when mated with associated enclosure, width: 163 mm, height: 30 mm, depth: 62 mm, color: black (9005).

4055626906324

only

available

100+

pcs.

(2026-08-29)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

36¹⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-08-29

pcs.

Properties

Description

Dimensions

Files

Codes

Assembly note

Please observe the application note in the download area.

Degree of protection

IP66/IP67

The specification for IP protection applies to the item combination ECS-B-... in conjunction with an unaltered ECS-P...-B front panel.

When using front panels with connection technology, the IP protection class of the connection technology determines the protection class of the overall solution.

Recommendation

Further information and detailed dimensions are available in the download area.

Product type

Front plate

Housing type

Outdoor housing

Outdoor housings

Housing series

ECS

Product family

ECS..122X..S..

Width

163 mm

Height

30 mm

Depth

62 mm

PCB thickness

1.57 mm ... 2.36 mm

Color (Housing)

black (RAL 9005)

Material Housing

Flammability rating according to UL 94

Specification

DIN EN 60068-2-11:2000-02

IEC 60068-2-27:2008-02

IEC 60068-2-31:2008-05

IEC 60068-2-6:2007-12

IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08

IEC 60695-2-11:2014-02

VDMA 24364:2018-05

Frequency

10 - 2000 - 10 Hz

Sweep speed

1 octave/min

Acceleration

15g (61.6 Hz ... 2000 Hz)

50g

Test duration per axis

2.5 h

Test directions

X-, Y- and Z-axis

X-, Y- and Z-axis (pos. and neg.)

Temperature

850 °C

Time of exposure

30 s

Height of fall

50 cm

Pulse shape

Semi-sinusoidal

Shock duration

11 ms

Number of shocks per direction

Test duration

96 h

Result

Test passed

Result, degree of protection, IP code

IP66/IP68 (2 m/24 h)

Max. NEMA code to attain

Impact strength

IK08

Ambient temperature (operation)

-40 °C ... 100 °C

Ambient temperature (storage/transport)

-40 °C ... 100 °C

Number of PCB holders

Thickness of the PCB

1.57 mm ... 2.36 mm

Mounting type

Screw locking mechanism

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27190603

ECLASS-15.0

27190603

ETIM 10.0

EC002779

UNSPSC 21.0

31261500

GTIN

4055626906324

2230002 ECS-B-122X169-S-UV1-V Electronics housing

53³⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

2230003 ECS-B-122X169-S-UV1-NV Electronics housing

38⁸⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1054710 ECS-B-122X109-S-UV1-V Electronics housing

43²⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1054711 ECS-B-122X109-S-UV1-NV Electronics housing

34⁶⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1432444 SACC-CI-M12FS-4CON-L 90 SH SCO Contact carrier

10³⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1436628 SACC-CI-M12FS-4CON-L90 SCO Contact carrier

9⁶⁴€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1432457 SACC-CI-M12FSD-4CON-L90 SCO Contact carrier

10⁹⁰€ 0 €

only

available

100+

inquiry

2026-09-05

pcs.

1432431 SACC-CI-FS-5CON-L 90 SH SCO Contact carrier

10⁸⁰€ 0 €

only

available

100+

inquiry

2026-09-16

pcs.

1436644 SACC-CI-M12FS-5CON-L90 SCO Contact carrier

10²⁰€ 0 €

only

available

100+

inquiry

2026-10-12

pcs.

1437009 SACC-CI-M12FS-8CON-L90 SH SCO Contact carrier

18⁵⁰€ 0 €

only

available

100+

inquiry

2026-09-28

pcs.

1436990 SACC-CI-M12FS-8CON-L90 SCO Contact carrier

17²⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1424199 SACC-CI-M12FS-12CON-L90 SH Contact carrier

27²⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1424195 SACC-CI-M12FS-12CON-L90 Contact carrier

25⁹⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1424201 SACC-CI-M12FS-17CON-L90 SH Contact carrier

32⁷⁰€ 0 €

only

available

100+

inquiry

2026-09-19

pcs.

1424197 SACC-CI-M12FS-17CON-L90 Contact carrier

31³⁰€ 0 €

only

available

100+

inquiry

2026-11-04

pcs.

1424193 SACC-CI-M12FSY-8CON-L90 Contact carrier

27⁰⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1680539 PROT-M12 Screw plug

0⁹⁷€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1503302 PROT-M12 SH Screw plug

4²⁶€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1424180 SACC-CI-M12FSX-8CON-L90 Contact carrier

27⁰⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1560251 PROT-M12 FS Sealing cap

1⁷¹€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1430488 PROT-M12 FS-M Sealing cap

4⁰⁹€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1439887 SACC-CI-M12MS-4CON-L90 SH SCO Contact carrier

10⁹⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

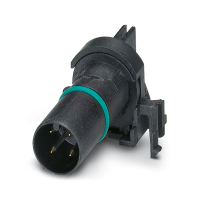

1436660 SACC-CI-M12MS-4CON-L90 SCO Contact carrier

9⁶⁴€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1436673 SACC-CI-M12MSD-4CON-L90 SH SCO Contact carrier

10⁹⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1439890 SACC-CI-M12MS-5CON-L90 SH SCO Contact carrier

11⁵⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1436686 SACC-CI-M12MS-5CON-L90 SCO Contact carrier

10²⁰€ 0 €

only

available

100+

inquiry

2026-10-13

pcs.

1436699 SACC-CI-M12MSB-5CON-L90 SH SCO Contact carrier

11⁵⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1437038 SACC-CI-M12MS-8CON-L90 SH SCO Contact carrier

18⁵⁰€ 0 €

only

available

100+

inquiry

2026-10-05

pcs.

1436987 SACC-CI-M12MS-8CON-L90 SCO Contact carrier

17²⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1424198 SACC-CI-M12MS-12CON-L90 SH Contact carrier

27²⁰€ 0 €

only

available

100+

inquiry

2026-09-15

pcs.

1424194 SACC-CI-M12MS-12CON-L90 Contact carrier

25⁹⁰€ 0 €

only

available

100+

inquiry

2026-10-13

pcs.

1424200 SACC-CI-M12MS-17CON-L90 SH Contact carrier

32⁷⁰€ 0 €

only

available

100+

inquiry

2026-10-12

pcs.

1424196 SACC-CI-M12MS-17CON-L90 Contact carrier

31³⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1200151 SF-TXH 20X100

8²⁵€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.
