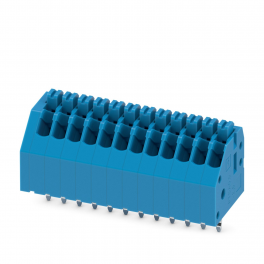

PTSA 0,5/12-2,5-F BU PCB terminal block

Manufactured by

Brand PHOENIX CONTACT

Printed circuit board terminal, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², number of rows: 1, number of positions per row: 12, product range: PTSA 0,5, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: blue, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard

4055626906096

only

available

100+

99999

pcs.

(2026-09-24)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

2¹⁷€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-09-24

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal current IN

2 A

Product type

PCB terminal block

Printed circuit board terminal

Nominal voltage UN

250 V

Product family

PTSA 0,5

Product line

COMBICON Terminals XS

Number of positions

Pitch

2.5 mm

Number of rows

Pin layout

Linear pinning

Solder pins per potential

Nominal current I<sub>N</sub>

2 A

Nominal voltage U<sub>N</sub>

250 V

Rated voltage (III/3)

63 V

Rated surge voltage (III/3)

2.5 kV

Rated voltage (III/2)

250 V

Rated surge voltage (III/2)

2.5 kV

Rated voltage (II/2)

320 V

Rated surge voltage (II/2)

2.5 kV

Type

PC termination block

Nominal cross section

0.5 mm²

Connection method

Push-in spring connection

Conductor cross-section rigid

0.14 mm² ... 0.5 mm²

Conductor cross-section flexible

0.2 mm² ... 0.5 mm²

Conductor cross-section AWG

24 ... 20

Stripping length

9 mm

Mounting type

Wave soldering

Note

WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201

Contact material

Cu alloy

Surface characteristics

hot-dip tin-plated

Metal surface terminal point (top layer)

Tin (4 µm - 8 µm Sn)

Metal surface soldering area (top layer)

Tin (4 µm - 8 µm Sn)

Color (Housing)

blue (5015)

Insulating material

Insulating material group

CTI according to IEC 60112

600

Flammability rating according to UL 94

Glow wire flammability index GWFI according to EN 60695-2-12

850

Glow wire ignition temperature GWIT according to EN 60695-2-13

775

Temperature for the ball pressure test according to EN 60695-10-2

125 °C

Width [w]

31.5 mm

Height [h]

16.7 mm

Length [l]

12 mm

Installed height

13.1 mm

Solder pin length [P]

3.6 mm

Pin dimensions

0.4 x 0.75 mm

Pin spacing

2.5 mm

Hole diameter

1 mm

Specification

IEC 60068-2-6:2007-12

IEC 60512-3-1:2002-02

IEC 60695-2-10:2013-04

IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09

IEC 60947-7-4:2019-01

IEC 60999-1:1999-11

Result

Test passed

Conductor cross-section/conductor type/tractive force setpoint/actual value

0.14 mm² / solid / > 10 N

0.2 mm² / flexible / > 10 N

0.5 mm² / flexible / > 20 N

0.5 mm² / solid / > 20 N

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27460101

ECLASS-15.0

27460101

ETIM 10.0

EC002643

UNSPSC 21.0

39121400

GTIN

4055626906096
