1099751

FLKM 20-PA-ET200SP Front adapter

Manufactured by

Brand PHOENIX CONTACT

VARIOFACE front adapter for Siemens SIMATIC® ET200SP, with a 20-pos. FLK-/IDC male strip, max. 16 channels can be connected

4055626950181

only

available

100+

1275

pcs.

(2026-08-29)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

97⁵⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-08-29

pcs.

Properties

Description

Dimensions

Files

Codes

Product type

Front adapter

Product family

VARIOFACE

Insulation

Functional insulation

Overvoltage category

Pollution degree

Operating voltage (DC)

≤ 60 V DC

Nominal operating mode

100% operating factor

Current (per branch)

≤ 1 A

Current (Voltage supply via IDC/FLK)

≤ 2 A

Current (Voltage supply via Push-in connection)

≤ 8 A

Rated insulation voltage

63 V

Rated surge voltage

0.6 kV (1.2/50 μs)

Suitable base unit

6ES7193-6BP00-0BA0

6ES7193-6BP00-0BA1

6ES7193-6BP00-0DA0

6ES7193-6BP00-0DA1

6ES7193-6BP00-2BA0

6ES7193-6BP00-2DA0

Suitable I/O module

6ES7131-6BH01-0BA0 (Base Units A0/A1)

6ES7131-6BH01-2BA0 (Base Units A0/A1)

6ES7132-6BH00-0AA0 (Base Units A0/A1)

6ES7132-6BH01-0BA0 (Base Units A0/A1)

6ES7132-6BH01-2BA0 (Base Units A0/A1)

6ES7134-6FB00-0BA1 (Base Units A0/A1)

6ES7134-6FF00-0AA1 (Base Units A0/A1)

6ES7134-6GB00-0BA1 (Base Units A0/A1)

6ES7134-6GD01-0BA1 (Base Units A0/A1)

6ES7134-6GD01-2BA1 (Base Units A0/A1)

6ES7134-6GF00-0AA1 (Base Units A0/A1)

6ES7134-6HB00-0CA1 (Base Units A0/A1)

6ES7134-6HB00-0DA1 (Base Units A0/A1)

6ES7134-6HD01-0BA1 (Base Units A0/A1)

6ES7134-6HD01-2BA1 (Base Units A0/A1)

6ES7134-6JD00-0CA1 (Base Units A0/A1)

6ES7134-6JD00-2CA1 (Base Units A0/A1)

6ES7134-6JF00-0CA1 (Base Units A0/A1)

6ES7134-6JF00-2CA1 (Base Units A0/A1)

6ES7134-6TD00-0CA1 (Base Units A0/A1)

6ES7135-6FB00-0BA1 (Base Units A0/A1)

6ES7135-6GB00-0BA1 (Base Units A0/A1)

6ES7135-6HB00-0CA1 (Base Units A0/A1)

6ES7135-6HB00-0DA1 (Base Units A0/A1)

6ES7135-6HD00-0BA1 (Base Units A0/A1)

Connection method

IDC/FLK pin strip

Plug-in connection

Push-in spring connection

Number of connections

Number of positions

Connection in acc. with standard

IEC 60603-13

Insertion/withdrawal cycles

> 50

Pitch

2.54 mm

3.81 mm

Stripping length

9 mm

Conductor cross-section rigid

0.14 mm² ... 1.5 mm²

Conductor cross-section flexible

0.14 mm² ... 1.5 mm²

0.25 mm² ... 0.75 mm² (Ferrule with plastic sleeve)

0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)

Conductor cross-section AWG

26 ... 16

Width

14.9 mm

Height

52.95 mm

Depth

48.99 mm

Degree of protection (Module)

IP00

Degree of protection (Installation location)

≥ IP54

Ambient temperature (operation)

-20 °C ... 60 °C

Ambient temperature (storage/transport)

-20 °C ... 70 °C

Altitude

≤ 2000 m

Identification

UL 508 Recognized

Standards/regulations

EN IEC 60664-1

Mounting type

Plug-in mounting

Mounting position

any

Notes on operation

Assembly note

Once plugged in, the front adapter and terminal block form a single unit that can no longer be separated.

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27242292

ECLASS-15.0

27242292

ETIM 10.0

EC002584

UNSPSC 21.0

32151600

GTIN

4055626950181

2296391 FLK 20/EZ-DR/ 50KONFEK Cable

38⁷⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

2296401 FLK 20/EZ-DR/ 100KONFEK Cable

42⁶⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

2296472 FLK 20/EZ-DR/ 150KONFEK Cable

46⁶⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

2296485 FLK 20/EZ-DR/ 200KONFEK Cable

50⁷⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

2296498 FLK 20/EZ-DR/ 300KONFEK Cable

58⁶⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

2298470 FLK 20/2FLK14/EZ-DR/100/KONFEK Cable

78⁸⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

2298438 FLK 20/2FLK14/EZ-DR/200/KONFEK Cable

85⁹⁰€ 0 €

only

available

100+

inquiry

2026-09-27

pcs.

2300818 FLK 20/2FLK14/EZ-DR/300/KONFEK Cable

93¹⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1680748 CABLE-FLK20/0,14/S/3,0M

68³⁰€ 0 €

only

available

100+

inquiry

2026-10-05

pcs.

1680750 CABLE-FLK20/0,14/S/2,0M

59⁷⁰€ 0 €

only

available

100+

inquiry

2026-10-05

pcs.

1680752 CABLE-FLK20/0,14/S/1,0M

51¹⁰€ 0 €

only

available

100+

inquiry

2026-10-05

pcs.

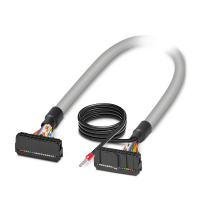

1680753 CABLE-FLK20/0,14/S/0,5M
