1100215

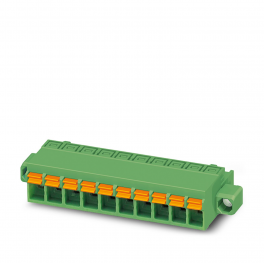

FKCN 2,5 HC/10-STF PCB connector

Manufactured by

Brand PHOENIX CONTACT

PCB connector, nominal cross section: 2.5 mm², color: green, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 10, product range: FKCN 2,5 HC/..-STF, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5 HC, locking: Screw locking mechanism, mounting method: Screw flange, type of packaging: packed in cardboard

4055626952420

only

available

100+

99999

pcs.

(2026-10-16)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

10³⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-10-16

pcs.

Properties

Description

Dimensions

Files

Codes

Product type

PCB connector

Product family

FKCN 2,5 HC/..-STF

Product line

COMBICON Connectors M

Number of positions

Pitch

5 mm

5.08 mm

Number of rows

Connector system

COMBICON MSTB 2,5 HC

Nominal cross section

2.5 mm²

Contact connection type

Socket

Locking type

Screw locking mechanism

Mounting type

Screw flange

Connection method

Push-in spring connection

Conductor/PCB connection direction

0 °

Conductor cross-section rigid

0.2 mm² ... 1.5 mm²

Conductor cross-section flexible

0.2 mm² ... 2.5 mm²

Conductor cross-section AWG

24 ... 16

Conductor cross-section, flexible, with ferrule, without plastic sleeve

0.25 mm² ... 1.5 mm²

Conductor cross-section, flexible, with ferrule, with plastic sleeve

0.25 mm² ... 1.5 mm²

Stripping length

10 mm

recommended crimping tool

1212034 CRIMPFOX 6

Note

WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201

Contact material

Cu alloy

Surface characteristics

hot-dip tin-plated

Metal surface terminal point (top layer)

Tin (4 µm - 8 µm Sn)

Metal surface contact area (top layer)

Tin (4 µm - 8 µm Sn)

Color (Housing)

green (6021)

Insulating material

PBT

Insulating material group

CTI according to IEC 60112

600

Flammability rating according to UL 94

Color (Actuating element)

orange (2003)

Width [w]

60.8 mm

Height [h]

10.9 mm

Length [l]

27.1 mm

General

In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.

Ambient temperature (storage/transport)

-40 °C ... 70 °C

Relative humidity (storage/transport)

30 % ... 70 %

Ambient temperature (assembly)

-5 °C ... 100 °C

Ambient temperature (operation)

-40 °C ... 100 °C (dependent on the derating curve)

Type of packaging

packed in cardboard

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27460202

ECLASS-15.0

27460202

ETIM 10.0

EC002638

UNSPSC 21.0

39121400

GTIN

4055626952420
