1151368

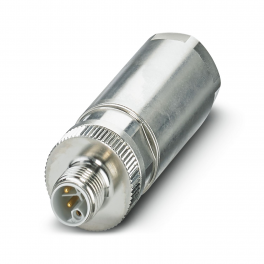

SACC-M12MSL-4FEPL-CL Power connector

Manufactured by

Brand PHOENIX CONTACT

Power connector, Power, 5-position, unshielded, Plug straight M12, coding: L, Push-lock spring connection, knurl material: Brass, nickel-plated, external cable diameter 8 mm ... 13 mm

4063151149628

only

available

100+

99999

pcs.

(2026-09-19)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

40⁰⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-09-19

pcs.

Properties

Description

Dimensions

Files

Codes

Assembly note

NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.

The wires can be connected both with ferrules and without ferrules

Nominal voltage UN

63 V DC

Nominal current IN

16 A (at 40 °C)

16 A (when using 2.5 mm² conductors)

Product type

Circular connector (cable-side)

Application

Energy supply

Number of positions

No. of cable outlets

Shielded

Coding

Cable outlet

straight

Overvoltage category

III

Degree of pollution

Width

23 mm

Height

23 mm

Length

70 mm

Outside diameter

8 mm ... 13 mm

Diameter housing

23 mm

Material

PA 6 (Actuation lever)

Flammability rating according to UL 94

Material of grip body

Brass, nickel-plated

Contact surface material

Contact carrier material

Material for screw connection

Brass, nickel-plated

Connection method

Push-lock spring connection

Connection cross section

1.5 mm² ... 2.5 mm²

1.5 mm² ... 2.5 mm² (with ferrule)

Connection cross section AWG

16 ... 14 (with ferrule)

16 ... 14 (without ferrule)

Stripping length of the individual wire

10 mm

Tightening torque

0.6 Nm (M12 knurl)

5 Nm (Pressure nut with connector housing)

Contact | Color (signal designation) | Contact (optional)

1 = BN

2 = WH

3 = BU

4 = BK

FE = GYPK

Rated surge voltage

1.5 kV

Nominal voltage UN

63 V DC

Nominal current IN

16 A (at 40 °C)

16 A (when using 2.5 mm² conductors)

Insertion/withdrawal cycles

≥ 100

Head design

Plug

Head cable outlet

straight

Head thread type

M12

Signal type/category

Power

Degree of protection

IP65

Ambient temperature (operation) (male connector/female connector)

-40 °C ... 85 °C (Plug / socket)

Ambient temperature (assembly)

-5 °C ... 50 °C (Plug / socket)

Standard designation

M12 connector

Standards/specifications

according to IEC 61076-2-111

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27440116

ECLASS-15.0

27440116

ETIM 10.0

EC002635

UNSPSC 21.0

39121400

GTIN

4063151149628
