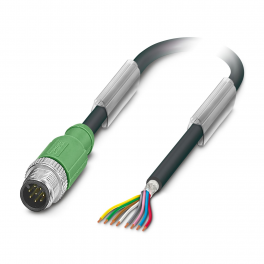

SAC-8P-M12MS/ 3,0-285 SH Sensor/actuator cable

1191690

SAC-8P-M12MS/ 3,0-285 SH Sensor/actuator cable

Manufactured by

Brand PHOENIX CONTACT

Sensor/actuator cable, 8-position, PUR, highly flexible, gray RAL 7001, shielded, Plug straight M12, coding: A, on free cable end, cable length: 3 m

4063151243418

only

available

100+

99999

pcs.

(2026-09-15)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

36⁷⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-09-15

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal voltage UN

30 V AC

30 V DC

Product type

Sensor/actuator cable

Application

Standard

Nominal current IN

2 A

Number of positions

No. of cable outlets

Coding

Overvoltage category

Degree of pollution

Flammability rating according to UL 94

Insulation resistance

≥ 100 MΩ

≥ 100 MΩ*km

Nominal voltage U<sub>N</sub>

30 V AC

30 V DC

Nominal current I<sub>N</sub>

2 A

Insertion/withdrawal cycles

≥ 100

Status display

Status display present

Type

free cable end

Plug straight M12

Coding type

Cable length

3 m

Shielded

yes

Cable type

PUR, gray, shielded [285]

Conductor structure signal line

32x 0.10 mm

AWG signal line

Conductor cross-section

1x 0.25 mm² (Drain wire)

4x 2x 0.25 mm² (Signal line)

External cable diameter

7.60 mm ±0.2 mm

Outer sheath, material

PUR

External sheath, color

gray RAL 7001

Conductor material

Bare Cu litz wires

Material wire insulation

PES

Single wire, color

white-brown, green-yellow, gray-pink, blue-red

Twisted pairs

2 cores to the pair

Overall twist

4 pairs for core

Optical shield covering

85 %

Nominal voltage, cable

350 V

Test voltage

1200 V

Minimum bending radius, flexible installation

7.5 x D

Smallest bending radius, movable installation

57 mm

Dynamic load capacity (bending)

Max. bending cycles: 3000000, Bending radius: 100 mm, Traversing path: 1.2 m, Traversing rate: 1.4 m/s, Acceleration: 2 m/s²

Resistance to oil

very good oil and chemical resistance

Other resistance

abrasion-resistant

Low adhesion

notch tough

Ozone and UV resistant

Ambient temperature (operation)

-25 °C ... 90 °C (Plug / socket)

-40 °C ... 80 °C (Cable, flexible installation)

-50 °C ... 80 °C (cable, fixed installation)

Degree of protection

IP65

IP67

Standard designation

M12 connector

Standards/specifications

IEC 61076-2-101

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27060311

ECLASS-15.0

27060311

ETIM 10.0

EC001855

UNSPSC 21.0

26121600

GTIN

4063151243418
