1208051

FOC-PP-17S4-LCD2-OM1

Manufactured by

Brand PHOENIX CONTACT

Distributor, design: Rail-mountable module, degree of protection: IP20, number of positions: 4, material: Metal, connection method: M17 circular connector, cable outlet: above and below, housing size: 1, color: gray, Ethernet

4063151276676

only

available

100+

99999

pcs.

(2026-09-27)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

487¹⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-09-27

pcs.

Properties

Description

Dimensions

Files

Codes

Product type

Network distributor box

Type

Rail-mountable module

Number of positions

Connection profile

LC-Duplex

No. of conductors

Number of module slots

Number of slots

Protective cover

yes

Cable outlet

above and below

Attenuation

≤ 0.6 dB

Transmission medium

Connection method

M17 circular connector

Signal type/category

Ethernet

Width

40 mm

Height

130 mm

Depth

115 mm

Housing width

40 mm

Ferrule diameter

1.25 mm

Color

gray

Flammability rating according to UL 94

Ferrule material

Zirconia ceramics

Housing material

Metal

Housing surface material

Powder-coated, gray (metal housing)

Cable type

Fan out

Multimode fiberglass

External cable diameter

≤ 12.00 mm (of 6 mm)

6 mm ... 12 mm

Individual wire diameter

2 mm

Number of fibers

Fiber

GOF

Fiber type

Multimode fiberglass 62.5/125 µm

Degree of protection

IP20

Ambient temperature (operation)

-40 °C ... 85 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Ambient temperature (assembly)

-5 °C ... 55 °C

Mounting type

DIN rail mounting

Assembly note

Option for flexible replugging of DIN rail adapter

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

19170113

ECLASS-15.0

19170113

ETIM 10.0

EC002699

UNSPSC 21.0

43223300

GTIN

4063151276676

1407032 FOC-TOOL-FERRULECLEANER-1.25 FO accessories

318⁹⁰€ 0 €

only

available

100+

inquiry

2026-09-14

pcs.

1087168 FOC-17P4-17P4-GL01/10 Connecting cable

464⁰⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1087167 FOC-17P4-17P4-GL01/20 Connecting cable

516⁷⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087166 FOC-17P4-17P4-GL01/30 Connecting cable

569⁴⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087165 FOC-17P4-17P4-GL01/40 Connecting cable

622²⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1087164 FOC-17P4-17P4-GL01/50 Connecting cable

674⁹⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087158 FOC-17P4-17P4-GL01/100 Connecting cable

938⁵⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087143 FOC-17P4-17P4-GL01/160 Connecting cable

1254⁹⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087138 FOC-17P4-17P4-GL01/200 Connecting cable

1465⁸⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087135 FOC-FR19:1U-17S4-LCD2-OM1 Patch panel

652⁵⁰€ 0 €

only

available

100+

inquiry

2026-12-21

pcs.

1087121 FOC-FR19:1U-217S4-LCD4-OM1 Patch panel

803⁵⁰€ 0 €

only

available

100+

inquiry

2026-12-21

pcs.

1144197 FOC-LC:PA-LC:PA-OM1:D01/0.5 FO patch cable

68²⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1146497 FOC-LC:PA-LC:PA-OM1:D01/1 FO patch cable

68²⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1146505 FOC-LC:PA-LC:PA-OM1:D01/2 FO patch cable

70⁵⁰€ 0 €

only

available

100+

inquiry

2026-10-06

pcs.

1111843 FOC-LC:PA-LC:PA-OM1:D01/3 FO patch cable

72⁸⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1146514 FOC-LC:PA-LC:PA-OM1:D01/5 FO patch cable

77⁴⁰€ 0 €

only

available

100+

inquiry

2026-11-30

pcs.

1146520 FOC-LC:PA-LC:PA-OM1:D01/10 FO patch cable

89⁰⁰€ 0 €

only

available

100+

inquiry

2026-11-30

pcs.

1087163 FOC-17P4-17P4-GL01/60 Connecting cable

727⁶⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087162 FOC-17P4-17P4-GL01/70 Connecting cable

780³⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087161 FOC-17P4-17P4-GL01/80 Connecting cable

833¹⁰€ 0 €

only

available

100+

inquiry

2026-08-29

pcs.

1087160 FOC-17P4-17P4-GL01/90 Connecting cable

885⁸⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087157 FOC-17P4-17P4-GL01/110 Connecting cable

991²⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

1087146 FOC-17P4-17P4-GL01/120 Connecting cable

1044⁰⁰€ 0 €

only

available

100+

inquiry

2026-12-14

pcs.

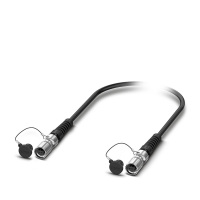

1087145 FOC-17P4-17P4-GL01/130 Connecting cable
