HC-M-USB-GC-F Contact insert module
N
0%
1353677

HC-M-USB-GC-F Contact insert module

Manufactured by
Brand PHOENIX CONTACT
Contact insert module, number of positions: USB-A, type : USB A 3.0, control contacts: 9, Socket, 20 V, 5 A, external cable diameter:7.5 mm ... 8.5 mm, application: Data, Gender changer
EAN: 4063151943882
No downloads found
only
available
5000+
76
pcs.
(2026-11-30)
In Phoenix Contact (DE) warehouse.
Product recommended retail price (RRP) is
000€
3094€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
5000+
inquiry
0
2026-11-30
pcs.
Properties
Description
Dimensions
Files
Codes
Assembly note
To ensure correct use, installation in housing with IP54 protection or better is required
General
Connectors may be operated only when there is no load/voltage.
The modules can only be installed in housings with large dimensions
Use the patch cable from the accessories list.
Product type
Modular contact insert
Series
HC-M-USB
Application
Data
Number of positions
9
Connection profile
USB-A
No. of cable outlets
1
Number of module slots
1
No. of control contacts
9
Shielded
yes
Overvoltage category
III
Degree of pollution
3
Clamping range of the strain relief clip
7.50 mm ... 8.50 mm
Width
33.9 mm
Height
56.2 mm
Length
14.6 mm
Minimum housing height
72 mm
Rated voltage (III/3)
20 V
Rated surge voltage
0.8 kV
Rated current
5 A
Transmission characteristics (category)
USB 3.2 Gen 1
Insertion/withdrawal cycles
≥ 500
Flammability rating according to UL 94
V0
Contact material
Copper alloy
Contact surface material
Au
Contact carrier material
PC
Standards/regulations
PC
Ambient temperature (operation)
-25 °C ... 85 °C ()
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
No files found
ECLASS-13.0
27440218
ECLASS-15.0
27440218
ETIM 10.0
EC000438
UNSPSC 21.0
39121400
GTIN
4063151943882
Item accessories
0%
HC-CBU-MOD Coding element
N
1636130 HC-CBU-MOD Coding element
314€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
HC-CST-MOD Coding element
N
1636127 HC-CST-MOD Coding element
226€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB2.0-UAM/0,5-PVC/UAM USB cable
N
1333131 NBC-USB2.0-UAM/0,5-PVC/UAM USB cable
630€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB2.0-UAM/1,0-PVC/UAM USB cable
N
1333136 NBC-USB2.0-UAM/1,0-PVC/UAM USB cable
757€ 0 €
only
available
5000+
inquiry
0
2027-02-02
pcs.
0%
NBC-USB2.0-UAM/1,5-PVC/UAM USB cable
N
1333137 NBC-USB2.0-UAM/1,5-PVC/UAM USB cable
881€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB2.0-UAM/1,8-PVC/UAM USB cable
N
1333138 NBC-USB2.0-UAM/1,8-PVC/UAM USB cable
957€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB2.0-UAM/2,0-PVC/UAM USB cable
N
1333139 NBC-USB2.0-UAM/2,0-PVC/UAM USB cable
1008€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB2.0-UAM/3,0-PVC/UAM USB cable
N
1333140 NBC-USB2.0-UAM/3,0-PVC/UAM USB cable
1260€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB2.0-UAM/5,0-PVC/UAM USB cable
N
1333145 NBC-USB2.0-UAM/5,0-PVC/UAM USB cable
1762€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/0,5-PVC/UAM USB cable
N
1333150 NBC-USB3.0-UAM/0,5-PVC/UAM USB cable
1354€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/1,0-PVC/UAM USB cable
N
1333151 NBC-USB3.0-UAM/1,0-PVC/UAM USB cable
1575€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/1,5-PVC/UAM USB cable
N
1333153 NBC-USB3.0-UAM/1,5-PVC/UAM USB cable
1796€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/1,8-PVC/UAM USB cable
N
1333155 NBC-USB3.0-UAM/1,8-PVC/UAM USB cable
1926€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/2,0-PVC/UAM USB cable
N
1333156 NBC-USB3.0-UAM/2,0-PVC/UAM USB cable
2017€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/3,0-PVC/UAM USB cable
N
1333157 NBC-USB3.0-UAM/3,0-PVC/UAM USB cable
2456€ 0 €
only
available
5000+
inquiry
0
2027-02-02
pcs.
0%
NBC-USB3.0-UAM/0,5-PVC/UCM USB cable
N
1333160 NBC-USB3.0-UAM/0,5-PVC/UCM USB cable
1409€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/1,0-PVC/UCM USB cable
N
1333165 NBC-USB3.0-UAM/1,0-PVC/UCM USB cable
1629€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/1,5-PVC/UCM USB cable
N
1333166 NBC-USB3.0-UAM/1,5-PVC/UCM USB cable
1850€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/1,8-PVC/UCM USB cable
N
1333185 NBC-USB3.0-UAM/1,8-PVC/UCM USB cable
1981€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/2,0-PVC/UCM USB cable
N
1333187 NBC-USB3.0-UAM/2,0-PVC/UCM USB cable
2072€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
NBC-USB3.0-UAM/3,0-PVC/UCM USB cable
N
1333190 NBC-USB3.0-UAM/3,0-PVC/UCM USB cable
2510€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
HC-M-B06-MFH-B
N
1182085 HC-M-B06-MFH-B
1184€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
HC-M-B10-MFH-B
N
1182088 HC-M-B10-MFH-B
1193€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
HC-M-B16-MFH-B
N
1182090 HC-M-B16-MFH-B
1205€ 0 €
only
available
5000+
inquiry
0
2027-01-15
pcs.
0%
HC-M-B24-MFH-B
N
1182094 HC-M-B24-MFH-B
1220€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
HC-M-B06-MFH-H
N
1182087 HC-M-B06-MFH-H
1184€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
HC-M-B10-MFH-H
N
1182089 HC-M-B10-MFH-H
1193€ 0 €
only
available
5000+
inquiry
0
2026-11-30
pcs.
0%
HC-M-B16-MFH-H
N
1182093 HC-M-B16-MFH-H
1205€ 0 €
only
available
5000+
inquiry
0
2027-03-10
pcs.
0%
HC-M-B24-MFH-H
N
1182095 HC-M-B24-MFH-H
1220€ 0 €
only
available
5000+
inquiry
0
2026-12-03
pcs.
0%

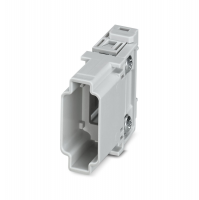

HC-M-USB-AD-PC-M Contact insert module
