Home Catalog Connectivity and Cabling Connectors Industrial Connectors VS-PPC-F1-RJ45-POBK-1RF-BU/BU Panel-mount frame
VS-PPC-F1-RJ45-POBK-1RF-BU/BU Panel-mount frame
N
0%
1404760

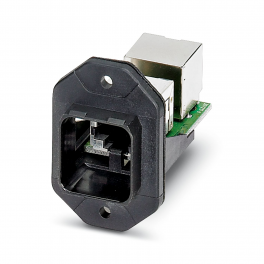

VS-PPC-F1-RJ45-POBK-1RF-BU/BU Panel-mount frame

Manufactured by
Brand PHOENIX CONTACT
RJ45 panel mounting frame, IP67, for push-pull interlocking, for rectangular mounting section, with grommet, without fixing screws, plastic, with RJ45 contact insert, 8-pos., shielded, socket on socket, CAT5e, Freenet system
4046356320849
No suppliers found
Product recommended retail price (RRP) is
000€
3510€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
100+
inquiry
0
pcs.
Properties
Description
Dimensions
Files
Codes
Product type
Panel-mount frame
Application
RJ45 PCB connection
Type
RJ45
Number of positions
8
Connection profile
RJ45
Shielded
yes
Overvoltage category
I
Degree of pollution
1
Rated voltage (III/3)
72 V (DC)
Rated surge voltage
≥ 1 kV
Rated current
1 A
Insulation resistance
≥ 500 MΩ
Transmission medium
Copper
Transmission characteristics (category)
CAT5 (IEC 11801:2002)
Connection method
Spring-cage connection
Width
29.5 mm
Height
42 mm
Length
63.2 mm
Color
black
Material
Plastic
Flammability rating according to UL 94
V0
Seal material
NBR
Seal material, flat gasket
NBR
Housing material
Plastic
Housing surface material
PA, light gray
Contact surface material
Au/Ni
Contact carrier material
Polyester GF
Insertion/withdrawal cycles
≥ 500
Degree of protection
IP65/IP67
Ambient temperature (operation)
-20 °C ... 70 °C
Ambient temperature (storage/transport)
-40 °C ... 70 °C
Ambient temperature (assembly)
-10 °C ... 60 °C
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
No files found
ECLASS-13.0
27440210
ECLASS-15.0
27440210
ETIM 10.0
EC002310
UNSPSC 21.0
39121400
GTIN
4046356320849
Item accessories
No item accessories found
No related items found
