Home Catalog Connectivity and Cabling Connectors Industrial Connectors HC-KIT-A04-R01 Connector set
HC-KIT-A04-R01 Connector set
N
0%
1409668

HC-KIT-A04-R01 Connector set

Manufactured by
Brand PHOENIX CONTACT
Connector set, consisting of: D7 sleeve housing and panel mounting base, 4-pos. plug and socket insert, M20 cable gland
4046356752411
No suppliers found
Product recommended retail price (RRP) is
000€
6750€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
100+
inquiry
0
pcs.
Properties
Description
Dimensions
Files
Codes
Nominal voltage UN
230 V
Product type
Connector set
Housing type
Complete housing
Nominal current IN
10 A
Application
Power
Type
D7
Number of positions
4
Connection profile
4+PE
No. of cable outlets
1
Seal present
yes
Protective cover
yes
Contact material type
turned
Shielded
yes
Cable outlet
lateral
Overvoltage category
III
Degree of pollution
3
Rated voltage (III/3)
230 V
Rated surge voltage
4 kV
Rated current
24 A
Nominal voltage UN
230 V
Nominal current IN
10 A
Connection method
Screw connection
Connection technology
Screw connection
Conductor cross-section
0.5 mm² ... 2.5 mm² (applies to stranded conductors with ferrules)
Connection cross section AWG
20 ... 14
Tightening torque
0.25 Nm ... 0.5 Nm
Width
38 mm
Height
78.3 mm
Length
34.2 mm
Width of the assembly cutout
21 mm
Length of the assembly cutout
21 mm
Material Housing
Die-cast aluminum, saltwater-resistant
Flammability rating according to UL 94
V0
Seal material
NBR, conductive
Contact material
Copper alloy
Contact surface material
Ag
Contact carrier material
PC
Locking latch material
PA
External cable diameter
10 mm ... 12 mm (for UL 514 B)
6 mm ... 12 mm
9 mm ... 13 mm
Locking type
Latch
Degree of protection
IP65
Impact strength
IK06
Ambient temperature (operation)
-40 °C ... 100 °C
Mounting type
Screw mounting
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
No files found
ECLASS-13.0
27440113
ECLASS-15.0
27440113
ETIM 10.0
EC002636
UNSPSC 21.0
39121400
GTIN
4046356752411
Item accessories
0%
G-INS-M20-S68N-NNES-S Cable gland
N
1411163 G-INS-M20-S68N-NNES-S Cable gland
426€ 0 €
only
available
100+
inquiry
0
2026-09-01
pcs.
0%
HC-A04-I-UT-M Contact insert
N
1585236 HC-A04-I-UT-M Contact insert
1200€ 0 €
only
available
100+
inquiry
0
pcs.
0%
HC-STA-D07-HHFS-1STM20-EL-AL Housing
N
1419235 HC-STA-D07-HHFS-1STM20-EL-AL Housing
603€ 0 €
only
available
100+
inquiry
0
2026-09-23
pcs.
0%
HC-STA-D07-BWSCF-EL-AL Housing
N
1419251 HC-STA-D07-BWSCF-EL-AL Housing
1490€ 0 €
only
available
100+
inquiry
0
pcs.
0%

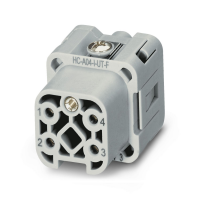

HC-A04-I-UT-F Contact insert
