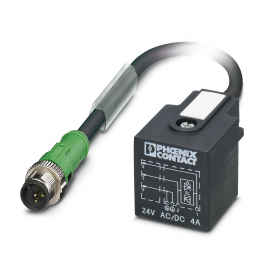

SAC-3P-MS/0,9-240/A SCO J-YM Sensor/actuator cable

1410061

SAC-3P-MS/0,9-240/A SCO J-YM Sensor/actuator cable

Manufactured by

Brand PHOENIX CONTACT

Sensor/actuator cable, 3-position, PUR halogen-free, yellow, Plug straight M12 SPEEDCON, coding: A, on Valve connector A, cable length: 0.9 m, Customer version

4046356888691

only

available

100+

99999

pcs.

(2026-09-13)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

15⁹⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-09-13

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal voltage UN

48 V AC

60 V DC

Product type

Sensor/actuator cable with valve connector

Nominal current IN

4 A

Number of positions

No. of cable outlets

Shielded

Coding

Overvoltage category

III

Degree of pollution

Flammability rating according to UL 94

Seal material

TPU

Material housing valve plug

TPU

Material of grip body

TPU

Contact material

CuSn

Contact surface material

Ni/Au

Contact carrier material

TPU GF

Valve plug contact insert material

PA 6.6

Material for screw connection

Zinc die-cast, nickel-plated

Insulation resistance

≥ 10 GΩ*km

≥ 100 MΩ

Nominal voltage U<sub>N</sub>

48 V AC

60 V DC

Nominal current I<sub>N</sub>

4 A

Type

Plug straight M12 SPEEDCON

Valve connector A

Locking type

SPEEDCON

Coding type

Material

CuSn (Contact)

PA 6.6 (Contact carrier)

Sn (Contact surface)

TPU (Housing)

Cable length

0.9 m

Cable weight

30 kg/km

UL AWM Style

20549 (80°C/300 V)

Cable type

PUR halogen-free yellow [240]

Conductor structure signal line

28x 0.15 mm

AWG signal line

Conductor cross-section

3x 0.5 mm²

Wire diameter incl. insulation

1.46 mm ±0.02 mm

External cable diameter

4.50 mm ±0.15 mm

Outer sheath, material

PUR

External sheath, color

yellow

Conductor material

Bare Cu litz wires

Material wire insulation

Single wire, color

black 1, black 2, green/yellow

Thickness, insulation

≥ 0.21 mm

Thickness, outer sheath

approx. 0.60 mm

Overall twist

3 wires, twisted

Max. conductor resistance

≤ 39 Ω/km

Nominal voltage, cable

≤ 300 V

Test voltage

≥ 3000 V

Minimum bending radius, fixed installation

5 x D

Minimum bending radius, flexible installation

10 x D

Smallest bending radius, fixed installation

23 mm

Smallest bending radius, movable installation

45 mm

Halogen-free

in accordance with DIN VDE 0472 part 815

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27060312

ECLASS-15.0

27060312

ETIM 10.0

EC001855

UNSPSC 21.0

31251500

GTIN

4046356888691
