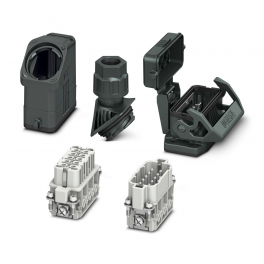

HC-EVO-A10UT-BWSC-HH-M20-PLRBK Connector set

1411357

HC-EVO-A10UT-BWSC-HH-M20-PLRBK Connector set

Manufactured by

Brand PHOENIX CONTACT

Connector set, number of positions: 10, material: PA, connection method: Screw connection, connection cross section: AWG 20- 14, cable outlet: variable

4046356929271

No suppliers found

Product recommended retail price (RRP) is

0⁰⁰€

65⁵⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal voltage UN

250 V

Product type

Connector set

Housing type

Complete housing

Nominal current IN

20 A

Series

HC-D

Type

D15

Number of positions

Connection profile

10+PE

No. of cable outlets

Protective cover

yes

Cable outlet

variable

Overvoltage category

III

Degree of pollution

Rated voltage (III/3)

250 V

Rated surge voltage

4 kV

Rated current

20 A

Nominal voltage U_N

250 V

Nominal current I_N

20 A

Connection method

Screw connection

Connection technology

Screw connection

Conductor cross-section

0.5 mm² ... 2.5 mm² (applies to stranded conductors with ferrules)

Connection cross section AWG

20 ... 14

Width

39 mm

Height

100.5 mm

Length

82 mm

Drill hole distance, horizontal

70 mm

Drill hole distance, vertical

17.5 mm

Width of the assembly cutout

24 mm

Length of the assembly cutout

58 mm

Material Protective cover

Flammability rating according to UL 94

Seal material

NBR

Housing material

Contact material

Copper alloy

Contact surface material

Contact carrier material

Locking latch material

External cable diameter

7 mm ... 13 mm

Locking type

Latch

Degree of protection

IP66

Enclosure rating (NEMA)

12 (UL 50e)

Ambient temperature (operation)

-40 °C ... 100 °C

Assembly note

Connectors may only be actuated when there is no load/voltage.

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27440113

ECLASS-15.0

27440113

ETIM 10.0

EC002636

UNSPSC 21.0

39121400

GTIN

4046356929271
