Home Catalog Connectivity and Cabling Cable protection G-INB-M20-S68N-PEPDS-BK Cable gland

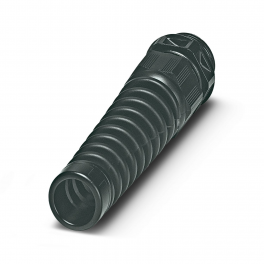

G-INB-M20-S68N-PEPDS-BK Cable gland
N
0%
1415179

G-INB-M20-S68N-PEPDS-BK Cable gland

Manufactured by
Brand PHOENIX CONTACT
Cable gland, material for screw connection: PA, application: Standard, external cable diameter 6 mm ... 13 mm, shielding: no, connecting thread: M20 x 1.5, color: jet black RAL 9005, with bend protection sleeve
EAN: 4055626038100
No downloads found
only
available
100+
1510
pcs.
(2026-10-19)
 In Phoenix Contact (DE) warehouse.
Product recommended retail price (RRP) is
000€
152€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
100+
inquiry
0
2026-10-19
pcs.
Properties
Description
Dimensions
Files
Codes
Product type
Cable screw gland
Application
Standard
No. of conductors
1
Manufacturer
WISKA
Manufacturer Designation
ESKVS 20
Shielded
no
Execution of the strain relief
A
Category of shock impact
2
Design, Strain relief
A
Length
103 mm
Length of the connecting thread
12 mm
Hole diameter
20.1 mm ... 20.2 mm
Wrench size, union nut
24 mm
Wrench size, support
24 mm
Hexagon angular dimension
27 mm
Thread type connection side
M20 x 1.5
Thread pitch
1.5 mm
Tightening torque
3 Nm (Union nut: EN 62444)
4 Nm (Support: EN 62444)
Color
black (RAL 9005)
Material
PA (Screw connection, halogen-free)
Seal material
EPDM
Glow wire ignition temperature GWIT according to EN 60695-2-13
750
Material for screw connection
PA
External cable diameter Cable 1
6 mm ... 13 mm
External cable diameter
7.5 mm ... 11.3 mm (for UL 514 B)
Halogen-free
yes
Degree of protection
IP68 (5 bar / 0.5 h)
IP69 (DIN EN 60529 / IEC 60529)
Ambient temperature (operation)
-40 °C ... 100 °C (static)
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
No files found
ECLASS-13.0
27140801
ECLASS-15.0
27140801
ETIM 10.0
EC000441
UNSPSC 21.0
39121300
GTIN
4055626038100
Item accessories
0%
A-INL-M20-P-BK Counter nut
N
1411215 A-INL-M20-P-BK Counter nut
029€ 0 €
only
available
100+
inquiry
0
2026-10-19
pcs.
