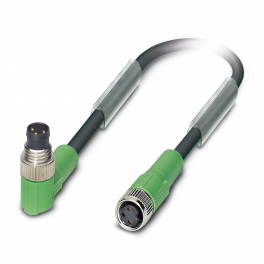

SAC-3P-M 8MR/3,0-PVC/M 8FS Sensor/actuator cable

1415884

SAC-3P-M 8MR/3,0-PVC/M 8FS Sensor/actuator cable

Manufactured by

Brand PHOENIX CONTACT

Sensor/actuator cable, 3-position, PVC, black RAL 9005, Plug angled M8, coding: A, on Socket straight M8, coding: A, cable length: 3 m

EAN: 4055626054551

No downloads found

only

available

100+

pcs.

(2026-10-20)

In Phoenix Contact (DE) warehouse.

Product recommended retail price (RRP) is

0⁰⁰€

17²⁴€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-10-20

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal voltage UN

48 V AC

60 V DC

Product type

Sensor/actuator cable

Application

Standard

Nominal current IN

4 A

Number of positions

No. of cable outlets

Shielded

Coding

Overvoltage category

Degree of pollution

Flammability rating according to UL 94

Seal material

NBR

Material of grip body

TPU, hardly inflammable, self-extinguishing

Contact material

CuSn

Contact surface material

Ni/Au

Contact carrier material

TPU GF

Material for screw connection

Zinc die-cast, nickel-plated

Insulation resistance

≥ 100 MΩ

≥ 100 MΩ*km (at 20 °C)

Nominal voltage U_N

48 V AC

60 V DC

Nominal current I_N

4 A

Insertion/withdrawal cycles

≥ 100

Status display

Status display present

Type

Plug angled M8

Socket straight M8

Coding type

Cable length

3 m

Cable weight

29 kg/km

Cable type

PVC black [PVC]

Conductor structure signal line

14x 0.15 mm

AWG signal line

Conductor cross-section

3x 0.25 mm² (Signal line)

Wire diameter incl. insulation

1.17 mm ±0.05 mm

External cable diameter

4.20 mm ±0.15 mm

Outer sheath, material

PVC

External sheath, color

black RAL 9005

Conductor material

Bare Cu litz wires

Material wire insulation

PVC

Single wire, color

brown, blue, black

Thickness, insulation

≥ 0.23 mm (Core insulation)

Thickness, outer sheath

≥ 0.76 mm

Overall twist

3 wires, twisted

Max. conductor resistance

max. 79 Ω/km (at 20 °C)

Nominal voltage, cable

≥ 300 V

Test voltage

≤ 3000 V

Smallest bending radius, fixed installation

13 mm

Flame resistance

As per UL-Style 2464

Resistance to oil

EN 60811-2-1

Ambient temperature (operation)

-10 °C ... 80 °C (Cable, flexible installation)

-25 °C ... 80 °C (cable, fixed installation)

Degree of protection

IP65

IP67

IP68

Ambient temperature (operation) (male connector/female connector)

-25 °C ... 90 °C (Plug / socket)

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27060311

ECLASS-15.0

27060311

ETIM 10.0

EC001855

UNSPSC 21.0

26121600

GTIN

4055626054551
