Home Catalog Connectivity and Cabling Cable protection G-INS-M25-M68N-PNES-LG Cable gland

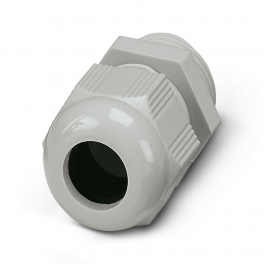

G-INS-M25-M68N-PNES-LG Cable gland
N
0%
1417654

G-INS-M25-M68N-PNES-LG Cable gland

Manufactured by
Brand PHOENIX CONTACT
Cable gland, material for screw connection: PA, application: Standard, external cable diameter 11 mm ... 17 mm, shielding: no, connecting thread: M25 x 1.5, color: lightgray RAL 7035
EAN: 4055626120973
No downloads found
only
available
100+
400
pcs.
(2026-10-19)
 In Phoenix Contact (DE) warehouse.
Product recommended retail price (RRP) is
000€
111€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
100+
inquiry
0
2026-10-19
pcs.
Properties
Description
Dimensions
Files
Codes
Assembly note
1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque
Product type
Cable screw gland
Application
Standard
No. of conductors
1
Manufacturer
BIMED
Manufacturer Designation
BM-EN-13
Shielded
no
Execution of the strain relief
A
Category of shock impact
4
Design, Strain relief
A
Length
43 mm
Length of the connecting thread
8 mm
Hole diameter
25.1 mm ... 25.2 mm
Wrench size, union nut
29 mm
Wrench size, support
29 mm
Hexagon angular dimension
33.5 mm
Thread type connection side
M25 x 1.5
Thread pitch
1.5 mm
Tightening torque
3.5 Nm (Support sleeve)
5.5 Nm ±1 Nm (Cap nut)
Color
light gray (RAL 7035)
Flammability rating according to UL 94
V2
Seal material Cable seal
CR
Material for screw connection
PA
External cable diameter Cable 1
11 mm ... 17 mm
External cable diameter
13 mm ... 17 mm (for UL 514 B)
Degree of protection
IP66
IP68 (5 bar / 0.5 h)
Enclosure rating (NEMA)
1
12
13
4
4X
Ambient temperature (operation)
-40 °C ... 100 °C (static)
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
No files found
ECLASS-13.0
27140801
ECLASS-15.0
27140801
ETIM 10.0
EC000441
UNSPSC 21.0
39121300
GTIN
4055626120973
