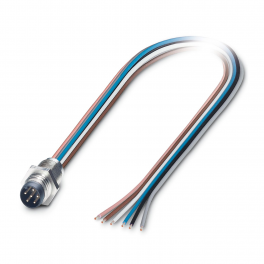

SACC-E-M 8MS-6CON-M 8/0,5 Device connector front mounting

1542664

SACC-E-M 8MS-6CON-M 8/0,5 Device connector front mounting

Manufactured by

Brand PHOENIX CONTACT

Device connector front mounting, 6-position, Pin, straight, M8, A-coding, on free cable end, Individual wires, cable length: 0.5 m, 0.14 mm², PVC litz wire

4046356097697

only

available

100+

1903

pcs.

(2026-08-31)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

16⁰⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-08-31

pcs.

Properties

Description

Dimensions

Files

Codes

Mounting type

Front mounting (M8 x 0,5)

Nominal voltage UN

30 V AC

30 V DC

Nominal current IN

1.5 A

Tightening torque

0.8 Nm ... 1 Nm (Installation-side)

Product type

Circular connectors (device side)

Application

Data

Number of positions

No. of cable outlets

Shielded

Coding

Thread type

Overvoltage category

Degree of pollution

Flammability rating according to UL 94

Seal material

Viton

Contact material

Cu alloy

Contact surface material

Contact carrier material

PA 6.6

Material for screw connection

Brass, nickel-plated

Conductor material

Tin-plated Cu litz wires

Rated surge voltage

0.8 kV

Contact resistance

≤ 3 mΩ

Insulation resistance

≥ 100 MΩ

Nominal voltage U<sub>N</sub>

30 V AC

30 V DC

Nominal current I<sub>N</sub>

1.5 A

Max. conductor resistance

80 Ω/km

Connection method

Individual wires

Contact connection type

Conductor cross-section

0.14 mm²

Head design

free cable end

Head cable outlet

straight

Head thread type

Cable length

0.5 m

Cable type

PVC litz wire

Wire diameter incl. insulation

1.3 mm ±0.1 mm

Single wire, color

black, brown,blue, white, gray, pink

Cable cross section

0.14 mm²

Conductor structure signal line

7x 0.16 mm

AWG signal line

Material wire insulation

PVC / UL

Thickness, insulation

0.38 mm

Nominal voltage, cable

300 V

Test voltage, cable

2000 V AC

Cable resistance

≥ 80 Ω/km

Cable insulation resistance

≥ 20 MΩ*km

Ambient temperature (operation)

-10 °C ... 105 °C

-40 °C ... 85 °C (cable, fixed installation)

Degree of protection

IP67

Ambient temperature (operation) (male connector/female connector)

-25 °C ... 85 °C

Ambient temperature (operation) (fixed installation)

-40 °C ... 105 °C (without mechanical actuation)

Ambient temperature (operation) (Cable, flexible installation)

-10 °C ... 105 °C

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27440103

ECLASS-15.0

27440103

ETIM 10.0

EC003570

UNSPSC 21.0

39121400

GTIN

4046356097697
