Product type

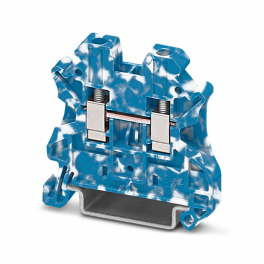

Feed-through terminal block
Area of application
Machine building
Plant engineering
Process industry
Railway industry
Maximum power dissipation for nominal condition
Number of connections per level
Internal cylindrical gage
Connection in acc. with standard
Conductor cross-section rigid
Cross section AWG
26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible
Conductor cross-section, flexible [AWG]
26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible ultrasound-compressed
Conductor cross-section, flexible [AWG] ultrasound-compressed
22 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
Flexible conductor cross-section (ferrule with plastic sleeve)
2 conductors with same cross section, rigid
2 conductors with same cross section, flexible
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
Nominal current
32 A (with 4 mm² conductor cross-section)
Maximum load current
38 A
41 A (with 6 mm² conductor cross-section)
Note
Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Operating temperature range
Ex-certified accessories
1205053 SZS 0,6X3,5
3022218 CLIPFIX 35
3022276 CLIPFIX 35-5
3047028 D-UT 2,5/10
3047167 ATP-UT
List of bridges
Plug-in bridge / FBS 10-6 / 3030271
Plug-in bridge / FBS 2-6 / 3030336
Plug-in bridge / FBS 20-6 / 3030365
Plug-in bridge / FBS 3-6 / 3030242
Plug-in bridge / FBS 4-6 / 3030255
Plug-in bridge / FBS 5-6 / 3030349
Plug-in bridge / FBS 50-6 / 3032224
- At bridging between non-adjacent terminal blocks
- At bridging between non-adjacent terminal blocks via PE terminal block
- At cut-to-length bridging with cover
- At cut-to-length bridging with partition plate
