Home Catalog Connectivity and Cabling Connectors Industrial Connectors CK2,5-ED-0,37ST AU Crimp contact

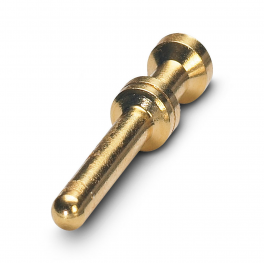

CK2,5-ED-0,37ST AU Crimp contact
N
0%
1585663

CK2,5-ED-0,37ST AU Crimp contact

Manufactured by
Brand PHOENIX CONTACT
Crimp contact, series: HC-M-06, Pin, turned, contact diameter: 2.5 mm, rated current: 16 A, connection cross section: 0.14 mm2 ... 0.37 mm2, AWG 22...26 , contact material: Cu alloy
4046356291576
only
available
100+
500
pcs.
(2026-08-31)
 Supply from Phoenix Contact’s warehouse
Product recommended retail price (RRP) is
000€
294€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
100+
inquiry
0
2026-08-31
pcs.
Properties
Description
Dimensions
Files
Codes
Notes on the product family
for HC-M-06..., HC-M-HV-, HC-M-08-, HC-M-20-, HC-A..., HC-B..., HC-BB..., HC-BBB..., and HC-HV contact carriers
Assembly note
For voltages less than 5 V and currents less than 5 mA, gold-plated contacts are recommended.
The quality of a crimp connection is determined by DIN EN 60352-2.
Product type
Crimp contact
Series
HC-A
HC-B
HC-BB
HC-BBB
HC-HV
HC-K
HC-M-06
HC-M-08
HC-M-20
HC-M-HV
Contact material type
turned
Contact connection type
Pin
Connection method
Crimp connection
Stripping length
7.5 mm (9.5 mm at HC-M-HV...)
Connection cross section
0.14 mm² ... 0.37 mm²
Connection cross section AWG
22 ... 26
Material Contact
Cu alloy
Material Contact surface
Au
Diameter (Contact diameter)
2.5 mm
Rated current
16 A (Take into account the derating of the contact insert used. The rated current corresponds to the maximum possible connection cross-section.)
Insertion/withdrawal cycles
≥ 500
Ambient temperature (operation)
-40 °C ... 125 °C
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
No files found
ECLASS-13.0
27440204
ECLASS-15.0
27440204
ETIM 10.0
EC000796
UNSPSC 21.0
39121500
GTIN
4046356291576
