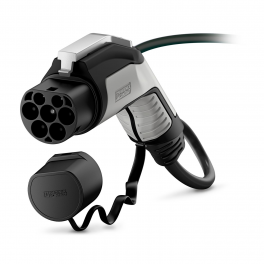

EV-GBG3C-3AC32A-5,0M6,0ESBK01 AC charging cable

1627602

EV-GBG3C-3AC32A-5,0M6,0ESBK01 AC charging cable

Manufactured by

Brand PHOENIX CONTACT

CHARX connect comfort, GB/T, AC charging cable, 32 A permanent, 440 V AC, with vehicle charging connector and open cable end, cable: 5 m, black, straight, with protective cap, housing: black, gray, PHOENIX CONTACT logo, GB/T 20234.2-2015, GB/T 18487.1-2015, for charging electric vehicles (EV) with alternating current (AC) via GB/T vehicle charging inlets

EAN: 4055626342832

No downloads found

only

available

100+

99999

pcs.

(2026-11-18)

In Phoenix Contact (DE) warehouse.

Product recommended retail price (RRP) is

0⁰⁰€

302⁸⁸€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-11-18

pcs.

Properties

Description

Dimensions

Files

Codes

Product type

AC charging cable

Product family

CHARX connect comfort

Type

AC charging cable

with vehicle charging connector and open cable end

Design

with protective cap

Charging standard

GB/T

Charging mode

Mode 3, Case C

Affixed logo

PHOENIX CONTACT logo

Label

14.1 mm x 44.8 mm (customer logo on request)

Customer variations

On request

Type of charging current

AC 3-phase

Charging current

32 A AC (3-phase)

Charging power

24.4 kW (3-phase)

Operating voltage

typ. 380 V

Note on the connection method

Crimp connection, cannot be disconnected

Number

2 (CP, PP)

5 (L1, L2, L3, N, PE)

Rated voltage

30 V AC

440 V AC

Rated current

2 A

32 A

Type of signal transmission

Pulse width modulation

Coding

220 Ω (between PE and CC)

Width

58 mm

Height

151.3 mm

Depth

238.7 mm

Color (Housing)

black (9005)

Color (Handle area)

black (9005)

Color (Actuating element)

silver gray (7001)

Color (Mating face)

black (9005)

Color (Protective cap)

black (9005)

Color (Cable)

black (9005)

Material (Vehicle charging connector)

Plastic

Material (Cable outer sheath)

TPE-U

Material (Contact surface)

Silver

Note

The color appearance and gloss level of the charging cable may vary.

Cable length

5 m

Wiring standards/regulations

prEN 50620/DIN EN 50620

Wiring certifications

VDE

Cable weight

max. 505.00 kg/km

Cable type

Class 5

straight

Cable structure

5 x 6.0 mm² + 1 x 0.5 mm²

External cable diameter

17.00 mm ±0.4 mm

Outer sheath, material

TPE-U

Stripping length of the sheath

70 mm ±5 mm

Stripping length

70 mm ±5 mm

Cable resistance

≤ 0.0033 Ω/m (based on a power core, at an ambient temperature of 20°C)

Bending radius

min. 127.5 mm (7.5x diameter)

Insertion/withdrawal cycles

> 10000

Insertion force

< 100 N

Withdrawal force

< 100 N

Degree of protection (Vehicle charging inlet)

IP55 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)

Degree of protection (Infrastructure charging plug)

Degree of protection (Protective cap)

IP54

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27144705

ECLASS-15.0

27144705

ETIM 10.0

EC002897

UNSPSC 21.0

39121500

GTIN

4055626342832
