1683455

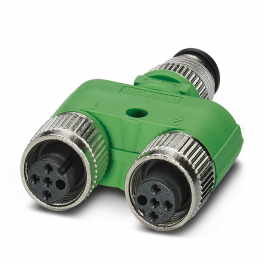

SAC-3P-M12Y/2XM12FS PE Y distributor

Manufactured by

Brand PHOENIX CONTACT

Y distributor, 4-position, unshielded, Plug straight M12, coding: A, on Socket straight M12, coding: A and Socket straight M12, coding: A

4017918166922

only

available

100+

7605

pcs.

(2026-08-29)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

21⁹⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-08-29

pcs.

Properties

Description

Dimensions

Files

Codes

General

with center distance of 18 mm, suitable for molded connectors and unshielded connectors that can be assembled with QUICKON IDC terminal block connection technology and a connection range of 0.14 mm² to 0.34 mm²

Nominal voltage UN

48 V AC

60 V DC

Product type

Y-distributor

Nominal current IN

4 A

Number of positions

No. of cable outlets

Shielded

Coding

Thread type

M12

Overvoltage category

Degree of pollution

Insulation resistance

≥ 100 MΩ

Nominal voltage U<sub>N</sub>

48 V AC

60 V DC

Nominal current I<sub>N</sub>

4 A

Status display

Status display present

Width

33 mm

Height

14.8 mm

Length

50.1 mm

Center distance

18 mm

Flammability rating according to UL 94

Seal material

NBR

Material of grip body

TPU, hardly inflammable, self-extinguishing

Contact material

CuZn

Contact surface material

Ni/Au

Contact carrier material

TPU GF

Material for screw connection

Zinc die-cast, nickel-plated

Type

Plug straight M12

Socket straight M12

Coding type

Insertion/withdrawal cycles

≥ 100

Degree of protection

IP65

IP67

Ambient temperature (operation) (male connector/female connector)

-25 °C ... 90 °C (Plug / socket)

Standard designation

M12 connector

Standards/specifications

IEC 61076-2-101

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27440106

ECLASS-15.0

27440106

ETIM 10.0

EC002925

UNSPSC 21.0

31251500

GTIN

4017918166922
