1792902

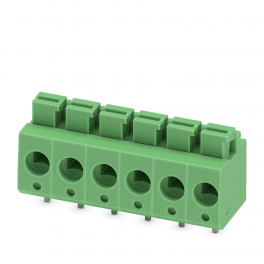

PTS 1,5/ 6-5,0-H PCB terminal block

Manufactured by

Brand PHOENIX CONTACT

Printed circuit board terminal, nominal current: 16 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: PTS 1,5/..-H, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard

4046356616386

only

available

100+

6700

pcs.

(2026-08-29)

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

1⁴²€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-08-29

pcs.

Properties

Description

Dimensions

Files

Codes

Nominal current IN

16 A

Product type

PCB terminal block

Printed circuit board terminal

Nominal voltage UN

400 V

Product family

PTS 1,5/..-H

Product line

COMBICON Terminals S

Type

PC termination block

Number of positions

Pitch

5 mm

Number of connections

Number of rows

Number of potentials

Pin layout

Linear pinning

Solder pins per potential

Nominal current I<sub>N</sub>

16 A

Nominal voltage U<sub>N</sub>

400 V

Rated voltage (III/3)

250 V

Rated surge voltage (III/3)

4 kV

Rated voltage (III/2)

400 V

Rated surge voltage (III/2)

4 kV

Rated voltage (II/2)

630 V

Rated surge voltage (II/2)

4 kV

Nominal cross section

1.5 mm²

Connection method

Push-in spring connection

Conductor cross-section rigid

0.14 mm² ... 2.5 mm²

Conductor cross-section flexible

0.14 mm² ... 2.5 mm²

Conductor cross-section AWG

26 ... 14

Conductor cross-section, flexible, with ferrule, without plastic sleeve

0.25 mm² ... 1.5 mm²

Conductor cross-section, flexible, with ferrule, with plastic sleeve

0.25 mm² ... 1.5 mm²

Stripping length

8 mm

Mounting type

Wave soldering

Note

WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201

Contact material

Cu alloy

Surface characteristics

hot-dip tin-plated

Metal surface terminal point (top layer)

Tin (4 µm - 8 µm Sn)

Metal surface soldering area (top layer)

Tin (4 µm - 8 µm Sn)

Color (Housing)

green (6021)

Insulating material

Insulating material group

CTI according to IEC 60112

600

Flammability rating according to UL 94

Glow wire flammability index GWFI according to EN 60695-2-12

850

Glow wire ignition temperature GWIT according to EN 60695-2-13

775

Temperature for the ball pressure test according to EN 60695-10-2

125 °C

Color (Actuating element)

green (6021)

Width [w]

30 mm

Height [h]

16.1 mm

Length [l]

10.5 mm

Installed height

13.6 mm

Solder pin length [P]

2.5 mm

Pin dimensions

0.83 x 0.5 mm

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27460101

ECLASS-15.0

27460101

ETIM 10.0

EC002643

UNSPSC 21.0

39121400

GTIN

4046356616386
