Home Catalog Distribution Panels and Enclosures Enclosures Spintų priedai ICS25-F22A-7035 Connection plate

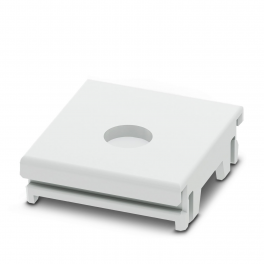

ICS25-F22A-7035 Connection plate
N
0%
2203894

ICS25-F22A-7035 Connection plate

Manufactured by
Brand PHOENIX CONTACT
DIN rail housing, ICS filler, with antenna function cutout, width: 25 mm, height: 7.25 mm, depth: 22.4 mm, color: light gray (similar RAL 7035)
EAN: 4055626465999
No downloads found
only
available
100+
220
pcs.
(2026-10-20)
 In Phoenix Contact (DE) warehouse.
Product recommended retail price (RRP) is
000€
161€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
100+
inquiry
0
2026-10-20
pcs.
Properties
Description
Dimensions
Files
Codes
Assembly note
Please observe the application note in the download area.
Product type
Connection plate
Housing type
DIN rail housing
Modular housings
Housing series
ICS
Product family
ICS25
Ventilation openings present
no
Width
25 mm
Height
7.25 mm
Depth
22.4 mm
PCB thickness
1.4 mm ... 1.8 mm
Color (Connection plate)
light gray (RAL 7035)
Material Connection plate
PA
Flammability rating according to UL 94
V0
CTI according to IEC 60112
600
Specification
IEC 60068-2-27:2008-02
IEC 60068-2-31:2008-05
IEC 60068-2-6:2007-12
IEC 60695-10-2:2014-02
IEC 60695-2-11:2014-02
VDMA 24364:2018-05
Frequency
10 - 150 - 10 Hz
50
Sweep speed
1 octave/min
Amplitude
0.15 mm (10 Hz ... 58.1 Hz)
Acceleration
15g
2g (58.1 Hz ... 150 Hz)
Test duration per axis
2.5 h
Test directions
X-, Y- and Z-axis
X-, Y- and Z-axis (pos. and neg.)
Temperature
125 °C
850 °C
Time of exposure
30 s
Test duration
1 h
Force
20 N
Height of fall
50 cm
Pulse shape
Half-sine
Shock duration
11 ms
Number of shocks per direction
3
Result
Test passed
Max. IP code to attain
IP20
Ambient temperature (operation)
-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)
-40 °C ... 55 °C
Ambient temperature (assembly)
-5 °C ... 100 °C
Relative humidity (storage/transport)
80 %
Number of PCB holders
2
Type of PCB mount
Slot
Thickness of the PCB
1.4 mm ... 1.8 mm
Mounting type
Slot
Outer packaging type
Resealable bag
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
No files found
ECLASS-13.0
27190605
ECLASS-15.0
27190605
ETIM 10.0
EC002779
UNSPSC 21.0
31261500
GTIN
4055626465999
