Home Catalog Sensors and Process Measurement Accessories for sensors MCR-SL-D-SPA-UI Setpoint adjuster
MCR-SL-D-SPA-UI Setpoint adjuster
N
0%
2710314

MCR-SL-D-SPA-UI Setpoint adjuster

Manufactured by
Brand PHOENIX CONTACT
Digital setpoint encoders with manual and automatic ramp for defining current and voltage signals, 4-pos. display
4046356091190
only
available
100+
299
pcs.
(2026-08-29)
 Supply from Phoenix Contact’s warehouse
Product recommended retail price (RRP) is
000€
29810€ 0 € pcs.
All prices without tax
All prices with tax
inquiry
only
available
100+
inquiry
0
2026-08-29
pcs.
Properties
Description
Dimensions
Files
Codes
Product type
Digital displays
Configuration
Keyboard
Maximum power dissipation for nominal condition
0.8 W (20 mA, 500 Ω)
Test voltage (Output/supply)
500 V AC (50 Hz, 60 s)
Maximum temperature coefficient
0.02 %/K
Maximum transmission error
< 0.2 % ((full-scale) at rated voltage)
Supply voltage range
10 V DC ... 30 V DC
Power consumption
1 W (With 24 mA/12 V)
Display
7-segment LED; 8 mm; red
7-segment, 8 mm, red
Number of positions displayed
4
4.00
Switching level &quot;1&quot; signal
4 V DC ... 30 V DC
Switching level &quot;0&quot; signal
0 V DC ... 2 V DC
Measuring rate
0.1s<sup>-1</sup> / 0.5s<sup>-1</sup>
Voltage output signal
0 V ... 12 V
Current output signal
0 mA ... 24 mA
Load/output load voltage output
≥ 2 kΩ
Load/output load current output
≤ 400 Ω (> 20 mA)
≤ 500 Ω (up to 20 mA)
Ripple
≤ 10 mV<sub>PP</sub>
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross-section rigid
0.14 mm² ... 1.5 mm²
Conductor cross-section flexible
0.14 mm² ... 1.5 mm²
Conductor cross-section AWG
26 ... 16
Width
48 mm
Height
24 mm
Depth
68 mm
Housing material
Macrolon 2405
Degree of protection
IP65 (Front)
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-25 °C ... 85 °C
Certificate
CE-compliant
Identification
UL 863
Noise immunity
EN 61000-4-2
EN 61000-6-2
Standards/regulations
EN 55011 / class B
Mounting type
Panel mount
Length
0
m
Width
0
m
Height
0
m
Weight Net
0
kg
Weight
0
kg
Package
0
kg
Volume
0
m³
No files found
ECLASS-13.0
27210301
ECLASS-15.0
27210301
ETIM 10.0
EC011349
UNSPSC 21.0
39121000
GTIN
4046356091190
Item accessories
0%

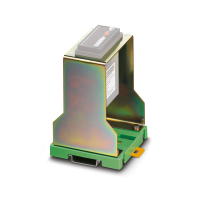

MCR-SL-D-RA DIN rail adapter
N
2810081 MCR-SL-D-RA DIN rail adapter
8580€ 0 €
only
available
100+
inquiry
311
pcs.
