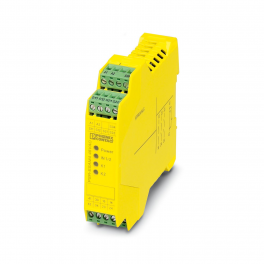

Typ. starting time with Us
330 ms (when controlled via A1)
Rated control circuit supply voltage US
Rated control supply current IS
typ. 22 mA (at U<sub>N</sub>)
Application
Emergency stop
Safety door
Mechanical service life
10x 10<sup>6</sup> cycles
approx. 10<sup>7</sup> cycles
Relay type
Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Typical response time
300 ms (automatic start)
40 ms (manual, monitored start)
Typ. starting time with U<sub>s</sub>
330 ms (when controlled via A1)
Typical release time
150 ms (when controlled via A1)
20 ms (when controlled via S11/S12 and S21/S22)
Maximum power dissipation for nominal condition
Rated surge voltage/insulation
4 kV / basic insulation (safe isolation, reinforced insulation, and 6 kV between A1-A2/logic/enabling and signaling current paths)
Rated control circuit supply voltage U<sub>S</sub>
Rated control supply current I<sub>S</sub>
typ. 22 mA (at U<sub>N</sub>)
Apparent power
typ. 4.5 VA (at U<sub>N</sub>)
Protective circuit
Suppressor diode
Surge protection
Varistor
Description of the input
non-safety-related
safety-related
Max. permissible overall conductor resistance
Number of outputs
1 (undelayed)
3 (undelayed)
Contact switching type
1 signaling current path
3 enabling current paths
Contact material
AgSnO<sub>2</sub>, + 0.2 µm Au
Switching voltage
max. 250 V AC/DC
min. 10 V AC/DC
Switching capacity
5 A (230 V (AC15))
6 A (24 V (DC13))
Limiting continuous current
5 A
6 A (observe derating)
Sq. Total current
72 A<sup>2</sup> (observe derating)
Interrupting rating (ohmic load) max.
Output fuse
10 A gL/gG NEOZED
6 A gL/gG NEOZED
Conductor cross-section rigid
Conductor cross-section flexible
Conductor cross-section, flexible, with ferrule, with plastic sleeve
0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross-section, flexible, with ferrule, without plastic sleeve
0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross-section AWG
Operating voltage display
