2903532

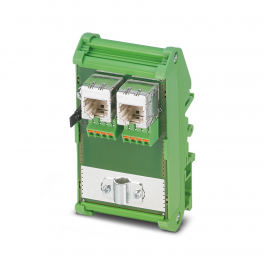

FL-PP-RJ45-SCC/SC041 Patch panel

Manufactured by

Brand PHOENIX CONTACT

Cable sharing module, two RJ45 jacks with Ethernet assignment (cable outlet on the front) to 8 spring-cage connection terminal blocks, CAT5e, 10/100 Mbps, DIN rail mounting, IP20, option of shield contacting on DIN rail via jumpers

EAN: 4046356746748

No downloads found

only

available

100+

287

pcs.

(2026-10-20)

In Phoenix Contact (DE) warehouse.

Product recommended retail price (RRP) is

0⁰⁰€

165²⁵€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

2026-10-20

pcs.

Properties

Description

Dimensions

Files

Codes

Note on application

Only for industrial use

Product type

Patch panel

Insulation

Basic insulation

Overvoltage category

Pollution degree

Rated insulation voltage

50 V

Rated surge voltage

0.5 kV

Serial transmission speed

10/100 Mbps

Connection method

RJ45 CAT5e

Spring-cage connection

No. of channels

Pin assignment

1, 2, 3, 6

4, 5, 7, 8

Transmission length

100 m (including patch cables)

Single conductor/terminal point, rigid

0.2 mm² ... 1.5 mm²

Single-wire/terminal point, flexible

0.2 mm² ... 1 mm²

Single-wire/terminal point, rigid AWG max.

Single-wire/terminal point, rigid AWG min.

Width

52 mm

Height

90 mm

Depth

51 mm

Color (Housing)

green (RAL 6021)

External cable diameter

6 mm ... 10 mm

Cable impedance

100 Ω

Insertion/withdrawal cycles

≤ 750

Degree of protection

IP20

Ambient temperature (operation)

-10 °C ... 50 °C

Identification

ISA-S71.04-1985 G3 Harsh Group A

Standards/regulations

DIN EN 50178

Mounting type

DIN rail mounting

Mounting position

any

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

19170112

ECLASS-15.0

19170112

ETIM 10.0

EC001128

UNSPSC 21.0

43223300

GTIN

4046356746748
