Notes on operation
Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.
Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed.
The PLC-ATP partition plate must be installed for voltages greater than 250 V (L1, L2, L3) between identical terminal blocks on adjacent modules.
The PLC-ATP separating plate should be installed for safe isolation between adjacent modules
The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact.
Rated actuating voltage UC
Rated actuating current IC
Switching threshold "0" signal in reference to UN
Application

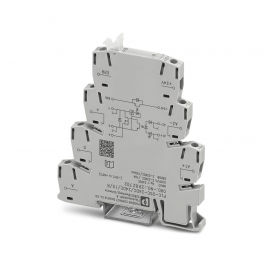

With integrated solid-state relay
Switching threshold "1" signal in reference to UN
Date of last data management
Maximum power dissipation for nominal condition
Rated actuating voltage U<sub>C</sub>
Rated actuating current I<sub>C</sub>
Switching threshold "0" signal in reference to U<sub>N</sub>
Switching threshold "1" signal in reference to U<sub>N</sub>
Operating voltage display
Protective circuit
Inverse diode
Reverse polarity protection; Polarity protection diode
Surge protection
Surge protection; Suppressor diode
Designation
Alarm output
DC voltage output
Output voltage range
3 V DC ... 33 V DC
8 V DC ... 33 V DC
Limiting continuous current
10 A (see derating curve)
100 mA
Voltage drop at max. limiting continuous current
Output circuit
2-conductor, floating
3-conductor, ground-referenced
Conductor cross-section rigid
Conductor cross-section flexible
0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross-section AWG
Tightening torque
0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing))
Flammability rating according to UL 94 (Housing)
Degree of protection (Installation location)
IP54 (Installation location)
