3240683

WP-PA HF 21,2 BK Protective hose

Manufactured by

Brand PHOENIX CONTACT

Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V0, inside diameter: 16.5 mm, Total length: 50 m

4046356736503

only

available

100+

pcs.

()

Supply from Phoenix Contact’s warehouse

Product recommended retail price (RRP) is

0⁰⁰€

250⁰⁰€ 0 € pcs.

All prices without tax

All prices with tax

inquiry

only

available

100+

inquiry

pcs.

Properties

Description

Dimensions

Files

Codes

Notes on operation

Protective hose length is measured stretched out; length tolerance ±5%

Product type

Protective hose

Tensile strength GRP

100 N

Outside diameter

21.2 mm

Internal diameter

16.5 mm

Material

PA 6

Flammability rating according to UL 94

Components

free from silicone, halogen, and cadmium

Bending radius, dynamic

75 mm

Bending radius, static

45 mm

Tensile strength

100 N

Halogen-free

yes

Degree of protection

IP68

IP69K

Ambient temperature (operation)

-40 °C ... 120 °C

Resistance to UV radiation

yes

Short-term temperature

150 °C

Length

Width

Height

Weight Net

Weight

Package

Volume

m³

No files found

ECLASS-13.0

27430304

ECLASS-15.0

27430304

ETIM 10.0

EC001177

UNSPSC 21.0

40141700

GTIN

4046356736503

3240977 WP-EC TPE HF 21,2 BK Transition sleeve from hose to cable

1⁷⁷€ 0 €

only

available

100+

inquiry

pcs.

3240984 WP-SC PA HF 21,2 BK Cable protection end sleeve

1¹⁷€ 0 €

only

available

100+

inquiry

pcs.

3240891 WP-G HF IP66 PG16 BK Protective hose screw connection

2⁹⁶€ 0 €

only

available

100+

inquiry

pcs.

3240898 WP-G HF IP66 M20 BK Protective hose screw connection

2⁹⁶€ 0 €

only

available

100+

inquiry

pcs.

3240877 WP-G HF IP69K PG16 BK Protective hose screw connection

3⁴⁵€ 0 €

only

available

100+

inquiry

pcs.

3240884 WP-G HF IP69K M20 BK Protective hose screw connection

3⁴⁵€ 0 €

only

available

100+

inquiry

pcs.

3240919 WP-GA HF IP66 PG16 BK Protective hose screw connection

5⁷⁴€ 0 €

only

available

100+

inquiry

pcs.

3240927 WP-GA HF IP66 M25 BK Protective hose screw connection

5⁷⁴€ 0 €

only

available

100+

inquiry

pcs.

3240905 WP-GA HF IP69K PG16 BK Protective hose screw connection

6³⁸€ 0 €

only

available

100+

inquiry

pcs.

3240912 WP-GA HF IP69K M20 BK Protective hose screw connection

6³⁸€ 0 €

only

available

100+

inquiry

pcs.

3240947 WP-GR HF IP66 PG16 BK Protective hose screw connection

9⁴⁰€ 0 €

only

available

100+

inquiry

pcs.

3240955 WP-GR HF IP66 M25 BK Protective hose screw connection

9²¹€ 0 €

only

available

100+

inquiry

pcs.

3240933 WP-GR HF IP69K PG16 BK Protective hose screw connection

10⁴⁰€ 0 €

only

available

100+

inquiry

pcs.

3240941 WP-GR HF IP69K M25 BK Protective hose screw connection

10⁴⁰€ 0 €

only

available

100+

inquiry

pcs.

3240961 WP-BASE C PA HF 21,2 BK Hose holder with cover

1⁷⁶€ 0 €

only

available

100+

inquiry

pcs.

3240970 WP-BASE HF 22 Hose clamp

1²⁰€ 0 €

only

available

100+

inquiry

100

pcs.

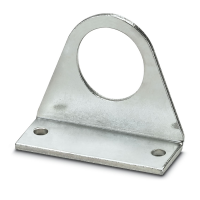

3241079 WP-BASE A PG16 Protective hose fixing bracket
