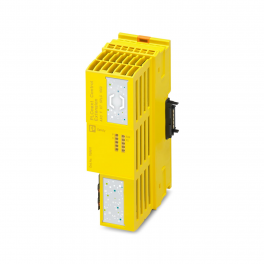

General
If the SPLC-1000 is operated with AXC F 2152, the AXC BS L 2 bus base module must be used.
Note on dimensions
The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715).
Width / Height / Depth
45 mm / 126.93 mm / 75 mm (The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715).)
Product family
PLCnext Control Extension
Special properties
Development process certified in accordance with IEC 62443-4-1
Product certified in accordance with IEC 62443-4-2
Protection class
III (IEC 61140, EN 61140, VDE 0140-1)
Maximum power dissipation for nominal condition
Supply voltage range
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Typical current consumption
Protective circuit
Reverse polarity protection; Polarity protection diode
Transient protection; Suppressor diode
Conductor cross-section, rigid
Conductor cross-section, flexible
Conductor cross-section AWG
Ambient temperature (operation)
-25 °C ... 50 °C up to 4000 m above mean sea level
-25 °C ... 55 °C up to 3000 m above mean sea level
-25 °C ... 60 °C up to 2000 m above mean sea level
Ambient temperature (storage/transport)
Permissible humidity (operation)
5 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)
5 % ... 95 % (according to DIN EN 61131-2)
Shock (operation)
30g (in accordance with EN 60068-2-27/IEC 60068-2-27)
Shock (storage/transport)
30g (in accordance with EN 60068-2-27/IEC 60068-2-27)
Vibration (operation)
5g (in accordance with EN 60068-2-6/IEC 60068-2-6)
Vibration (storage/transport)
5g (in accordance with EN 60068-2-6/IEC 60068-2-6)
Air pressure (operation)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)
58 kPa ... 106 kPa (up to 4500 m above mean sea level)
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37
Use of the device in these ambient conditions is prohibited.
Identification
Class I, Div. 2 Groups A, B, C, D T4
Class I, Zone 2, AEx ec IIC T4, Ex ec IIC T4 Gc X
cULus
Ex ec IIC T4 Gc
Industrial IT Security, IACS Component
II 3 G Ex ec IIC T4 Gc
Certificate
E238705
E366272
IECEx ULD 21.0029X
IITS2 029429 0027
UL 21 ATEX 2651X
Note
Configuration: Security Profile active
